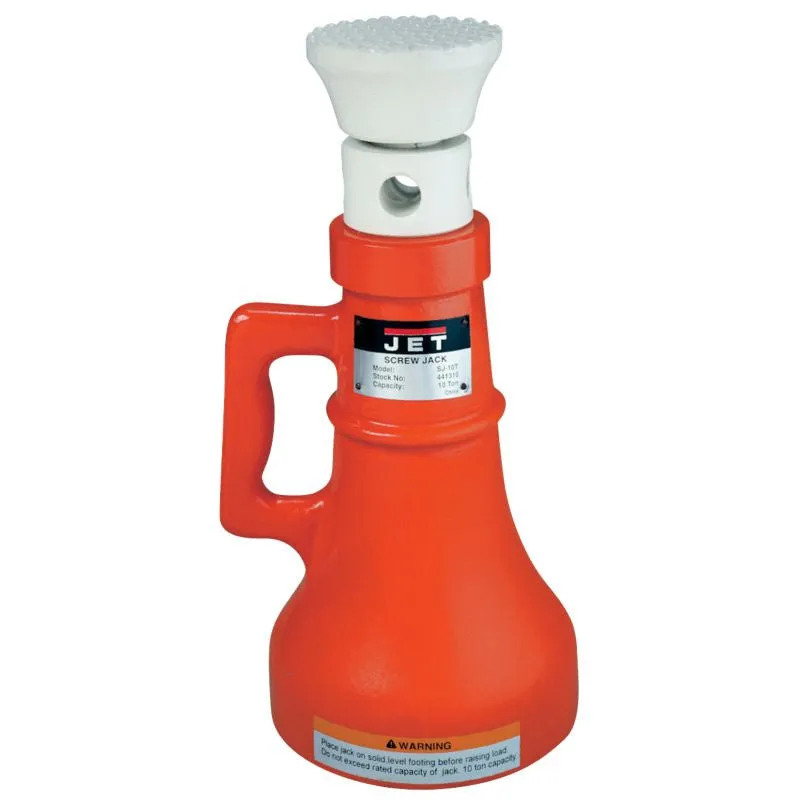

Jet 441310 SJ-10 10 Ton Screw Jack - One Stand Each
JET SJ Series Screw Jack is available in five capacities ranging from 5 to 25 Tons that hold the load without creeping. The cast bell shaped housing provides stability while the Jack design requires less effort to raise the load increasing productivity.
Features:
- Industrial design eliminates creeping when holding heavy loads
- Heavy-duty cast bell shaped base provides a stable foundation in multiple lifting environments
- Corrugated pivoting head, contours to the load providing maximum surface contact
- Improved design requires less effort to lift a maximum capacity load
- Turning bar not included (available separately)
- Complies with ANSI/ASME B30.1 Standards
Specifications:
- Capacity | 10 ton
- Screw Size | 1-1/2" x 8-5/16 "
- Bar Hole Size | 11/16"
- Base Dimensions | 5¼"
- Head Diameter | 3¼"
- Height Closed | 11½"
- Height Extended | 17¾"
- Model Number | SJ-10T
- Height | 12.7"
- Width | 6.6"
- Length | 6.4"
- Net Weight | 16.45 lbs
